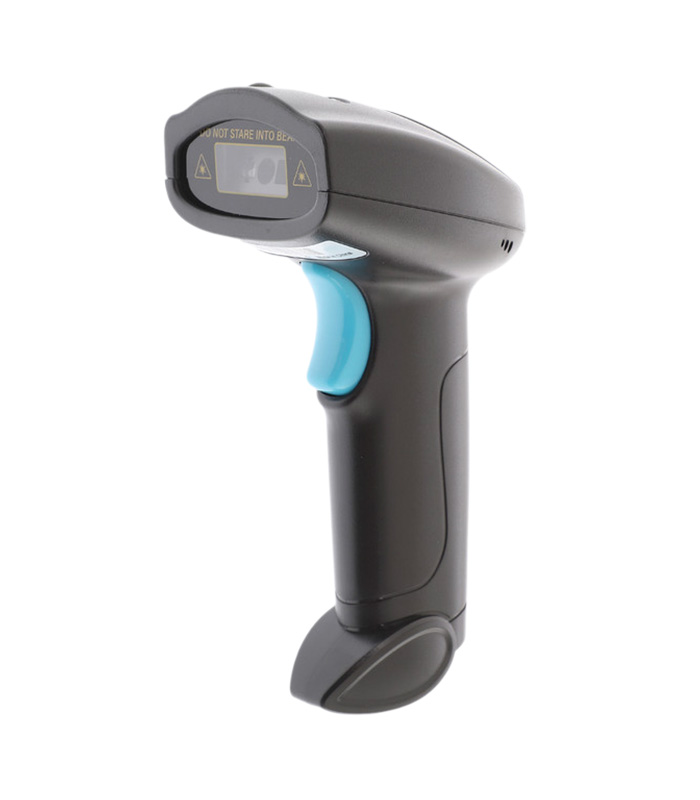

Barcode Scanner 7100W (Black)

• January 28th, 2025
• No Comments »

7100W is a versatile barcode scanner designed to read both 1D and 2D barcodes. Below are its key specifications:

• Supported Barcode Types: 1D barcodes such as Codabar, Code 11, Code 39, Code 93, UPC/EAN, Code 128, EAN128, Interleaved 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 DataBar; and 2D barcodes including QR code, Data Matrix, PDF417.
• Interface: USB-HID and USB Wireless, supporting one-to-one pairing.
• Light Source: 617nm LED aimer with a white LED.
• Sensor Resolution: CMOS image sensor.
• Scan Rate: 100 scans per second.
• Scan Angle: Yaw 65°, Rotation 360°, Pitch 60°.
• Field of View: 20 cm.
• Depth of Field: ≥5 mil.
• Trigger Modes: Manual, successive, and optional automatic scanning.
• Power Supply: DC 5V±5% with a current of 135mA.
• Battery: 2200mAh lithium battery with a charging time of 5 hours, providing approximately 5.5 hours of working time.
• Storage Capacity: 512,000 bytes.
• Operating Temperature: -20°C to 60°C.
• Storage Temperature: -40°C to 70°C.
• Humidity: 5% to 95% (non-condensing).
• Durability: Withstands multiple drops from 1.5 meters onto concrete.
• Package Contents: Scanner 7100W, 1-meter cable, USB receiver, and user manual.
